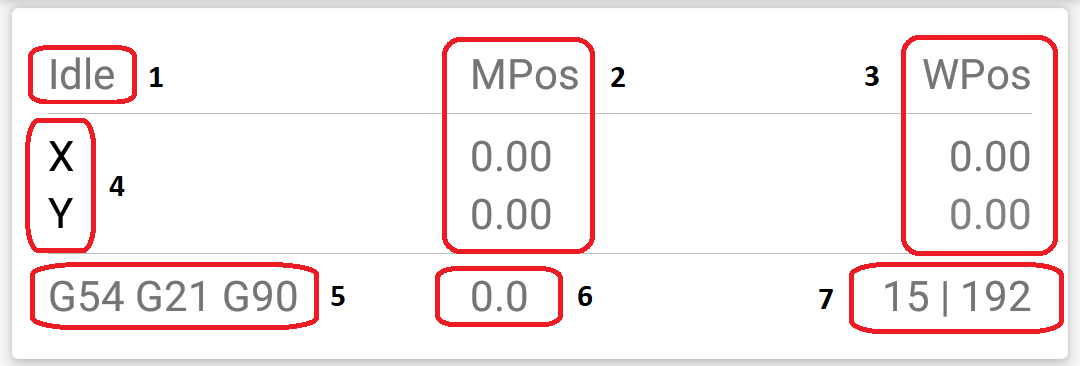

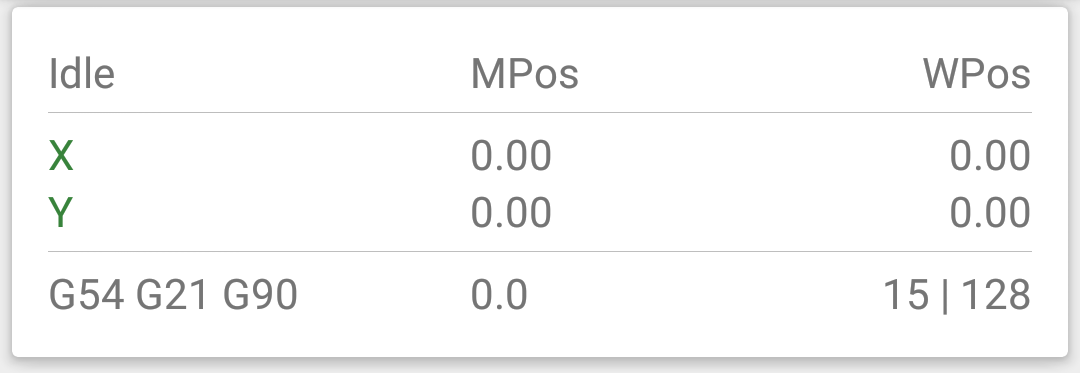

Figure-2: Machine Status Panel Information.

1. Machine State. 1
   • Valid states types: Idle, Run, Hold, Jog, Alarm, Door, Check, Home, Sleep. If not connected to any device then it will show the state as "Unknown"
   • Sub-states may be included via : a colon delimiter and numeric code. For a valid sub-states and information please visit grbl documentation
2. Machine Position. 2 3
   • This section shows the current machine and work position of X, Y. These axis labels 4 X, Y. will turns to red color if corresponding axis limit switch is triggered.
3. G-Code Parser State. 5
   • The selected coordinate system G54 or G55 or G56 or G57 or G58 or G59
   • Unit Mode G20 (inches) or G21 (millimeters)
   • Distance Mode. G90 absolute distance mode or G91 incremental distance mode
4. Current Feed Rate 6
5. Buffer State. (Planner buffer | Serial RX buffer) 7
